ABM-832B2 DIE DAST DIE DIE Auto Bender Machine készítése Funkciókat tartalmazott ： hajlítás, híd, becenevelés, perforáció, lippelés és vágás. Támogatott acélszabály vastagsága 0,45,53,0,71,1,05 mm, magasság 8-32 mm. A China ADEWO számos hazai és külföldi szerszámkészítő és nyomtatási társaság számára sikeres volt, hogy fejlett autóhajlító gépeket, költséghatékony, technikai támogatást és kiváló értékesítési szolgáltatást nyújtson.
Die Boards Die Making Auto Bender Machine
Shenzhen Adewo Automation Technology Co.,ltd. is a leading China Die Boards Die Making Auto Bender Machine manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Die Boards Die Making Auto Bender Machine have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Die Boards Die Making Auto Bender Machine services, you can consult us now, we will reply to you in time!

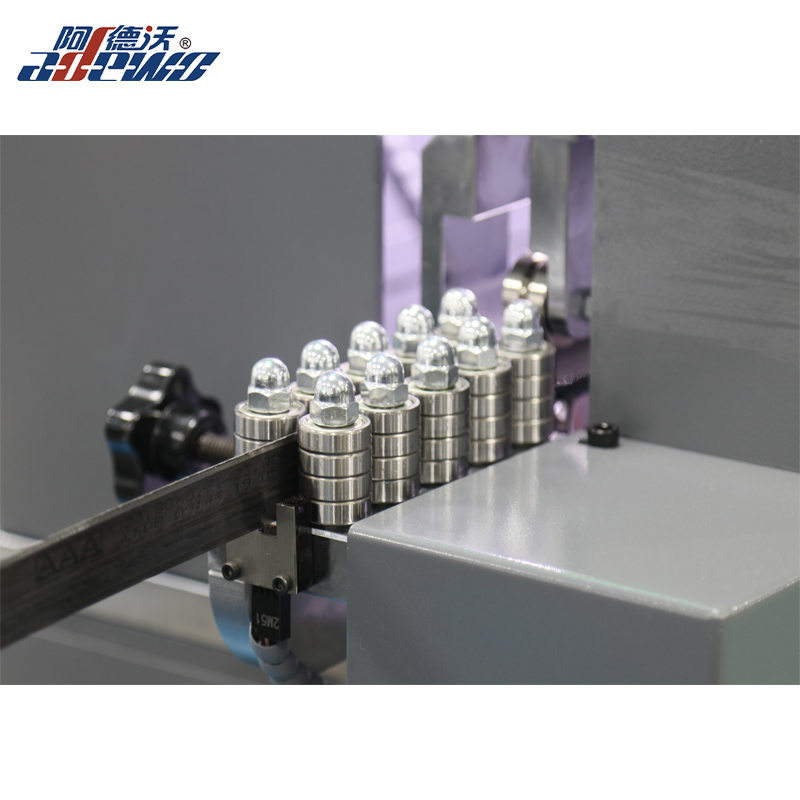

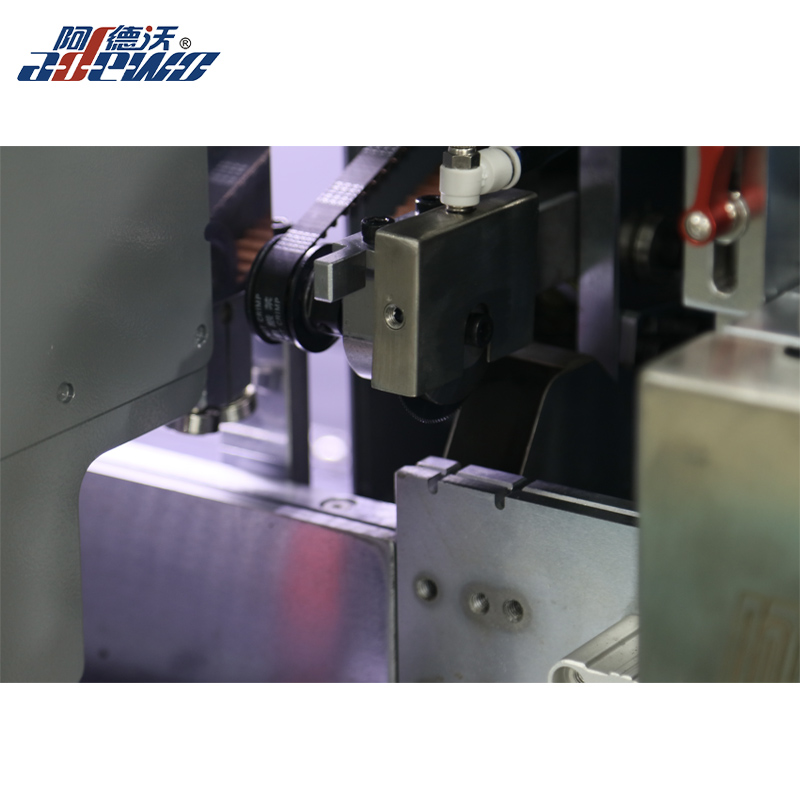

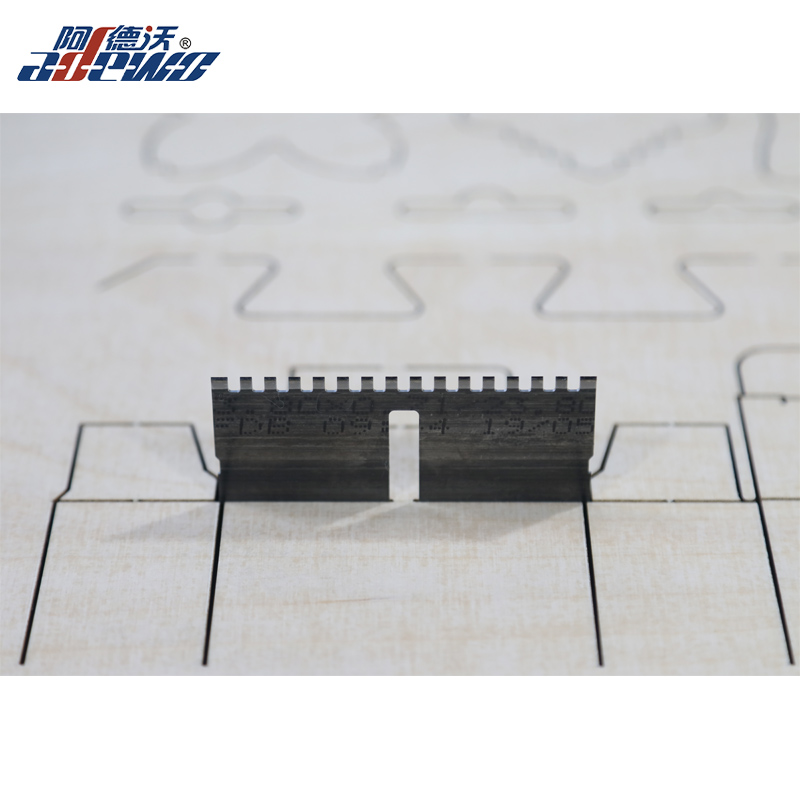

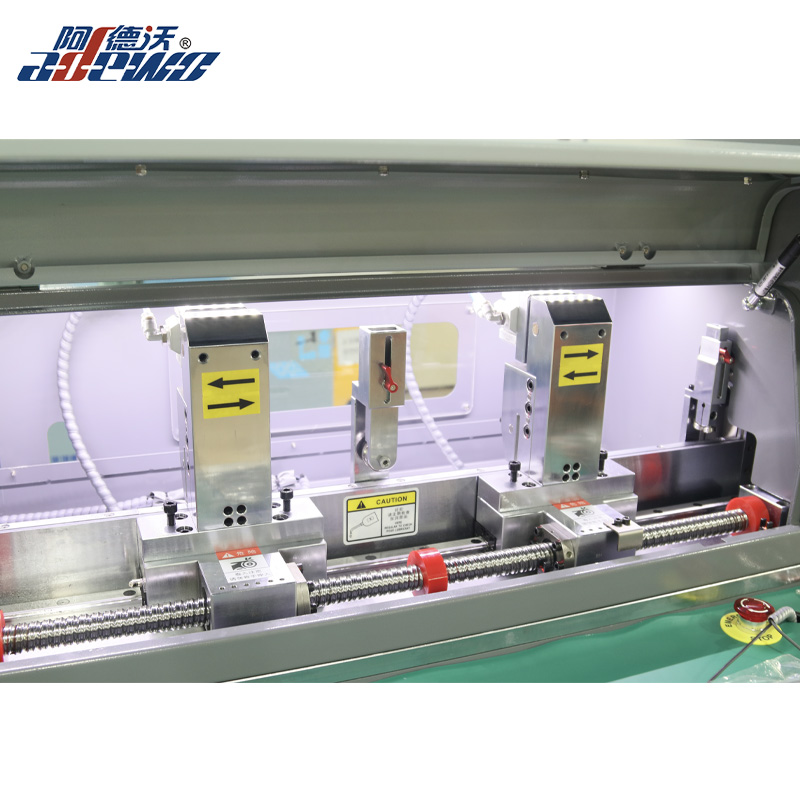

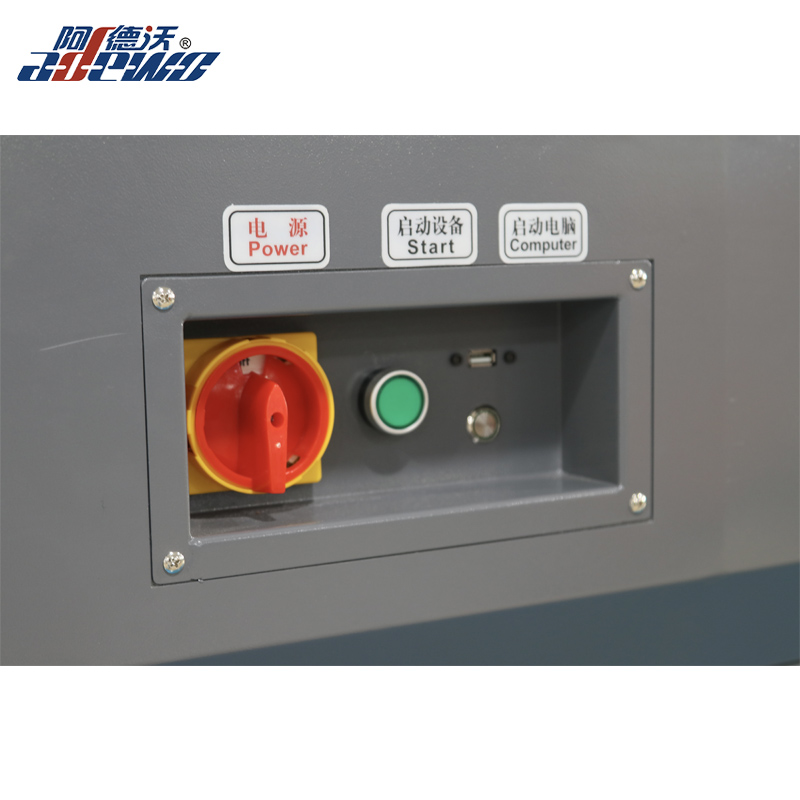

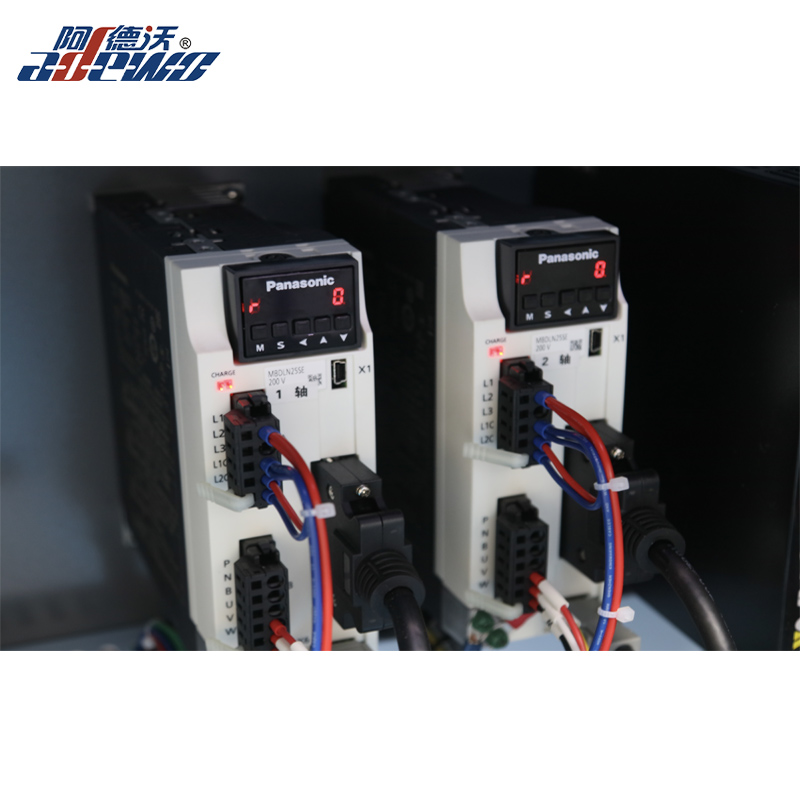

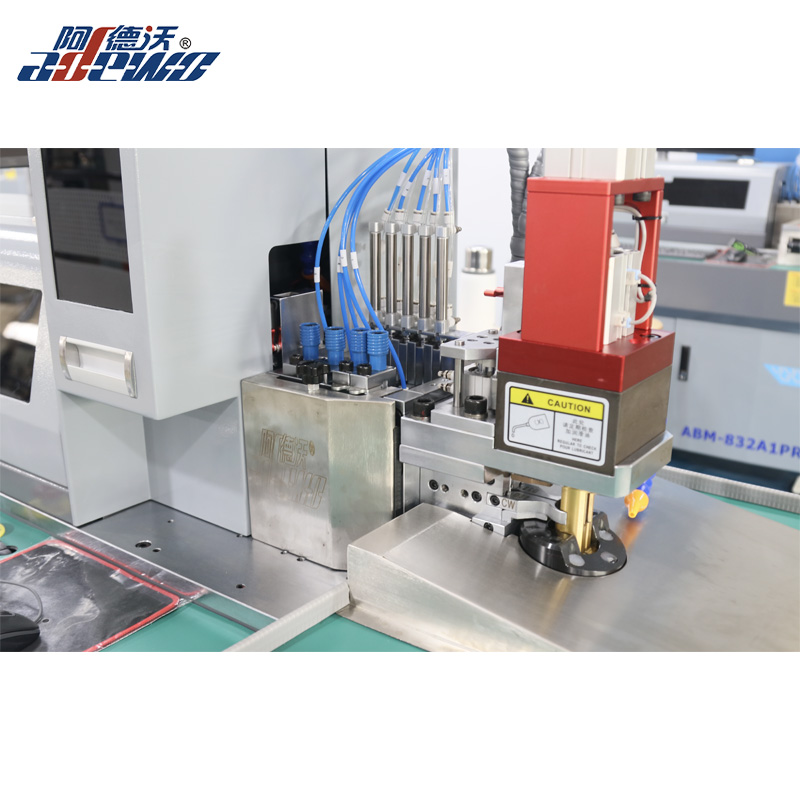

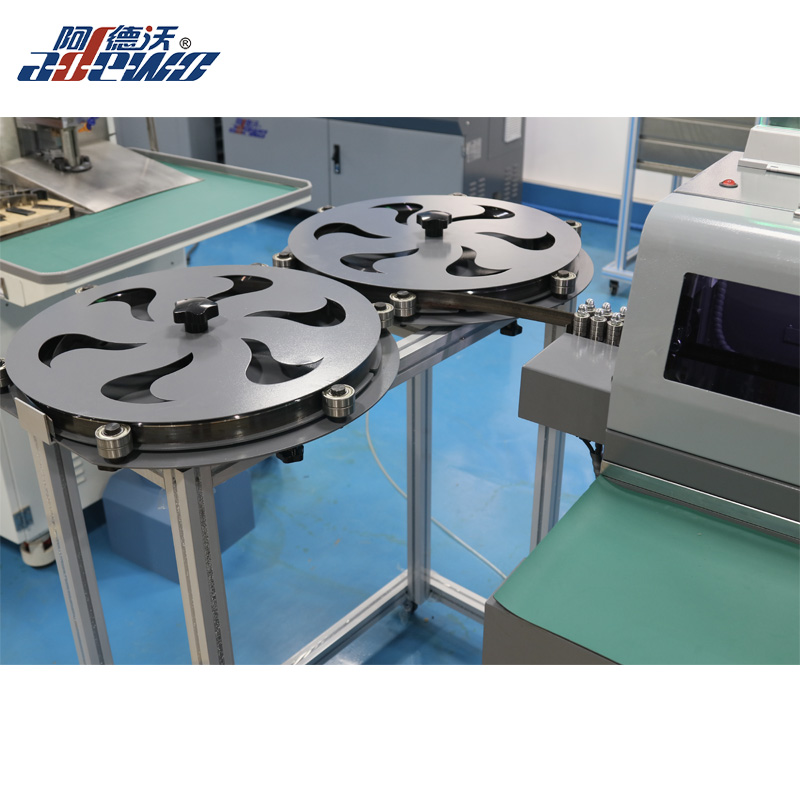

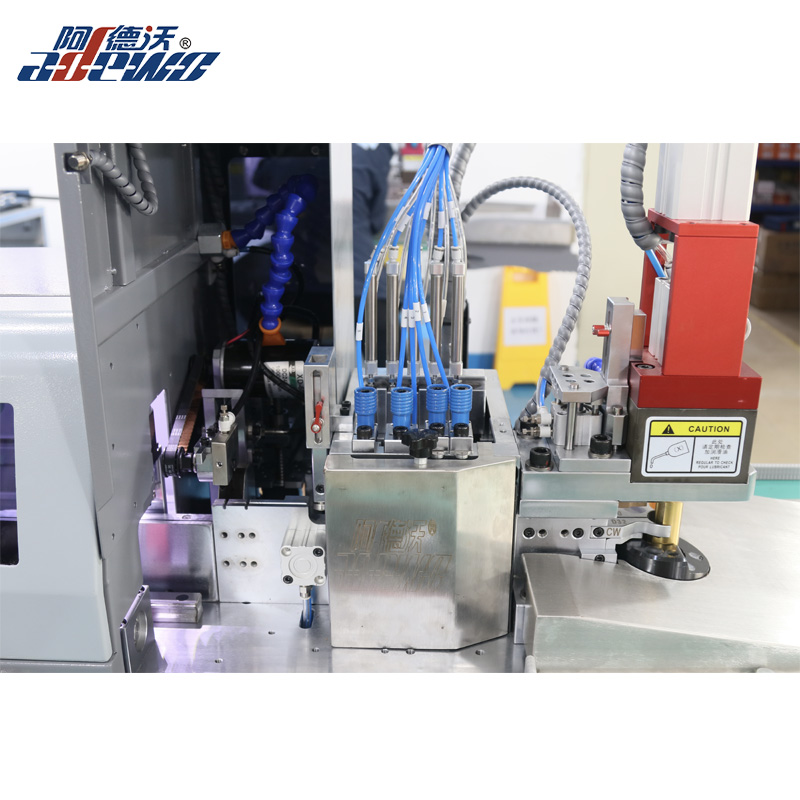

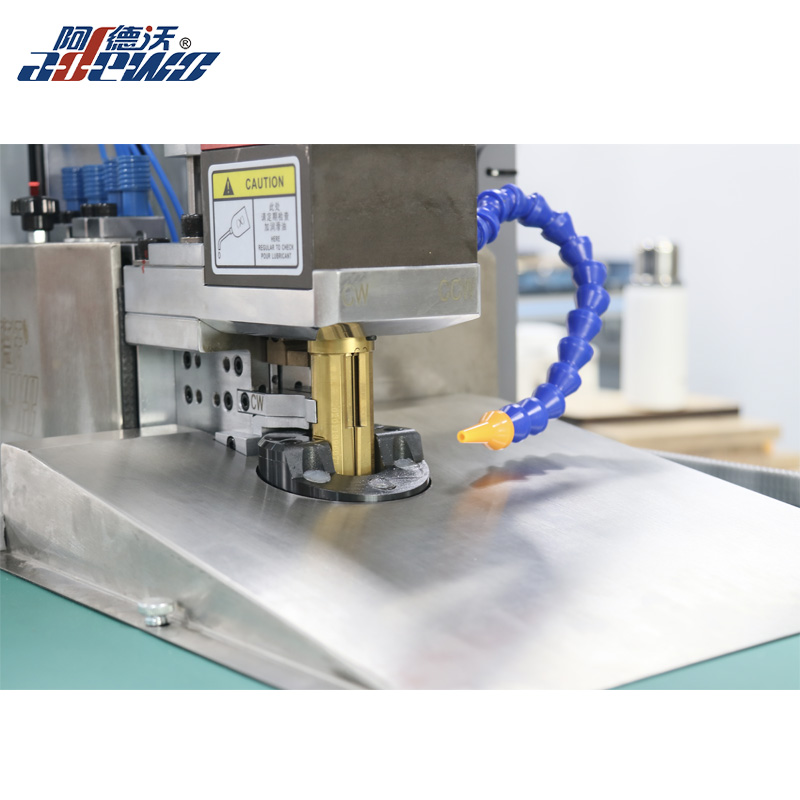

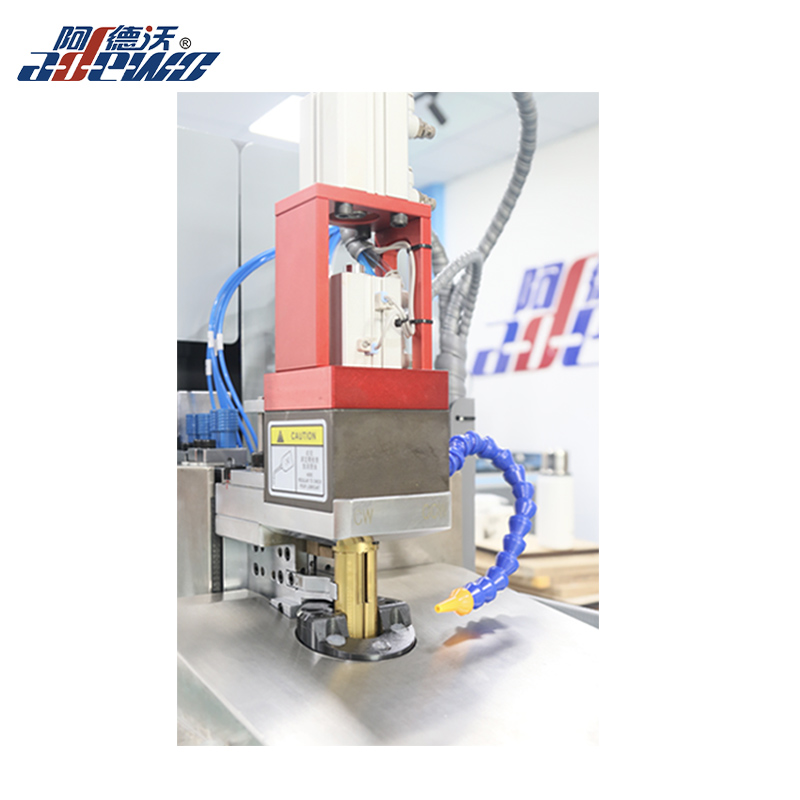

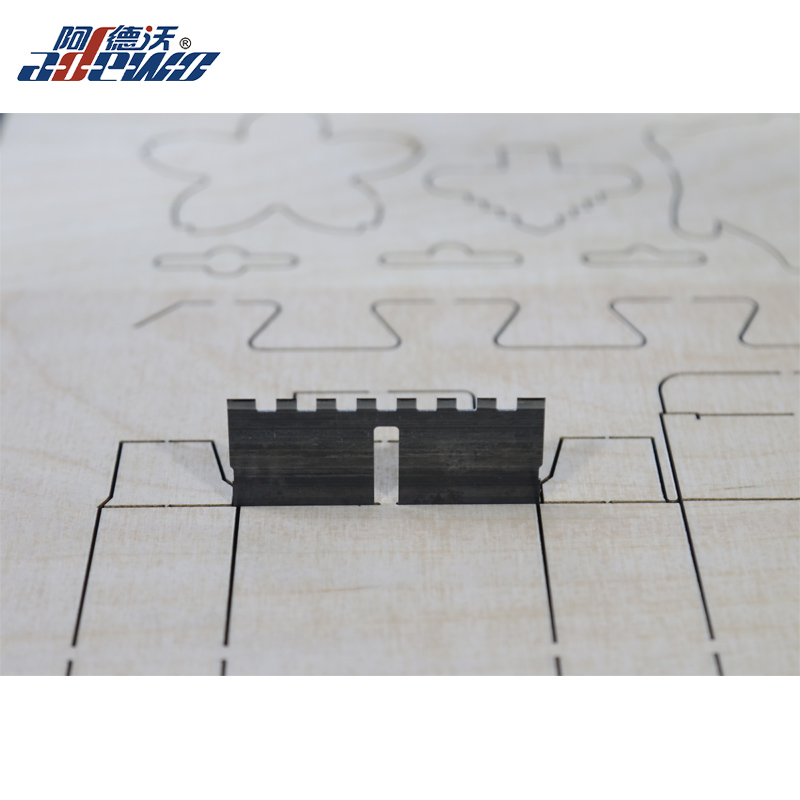

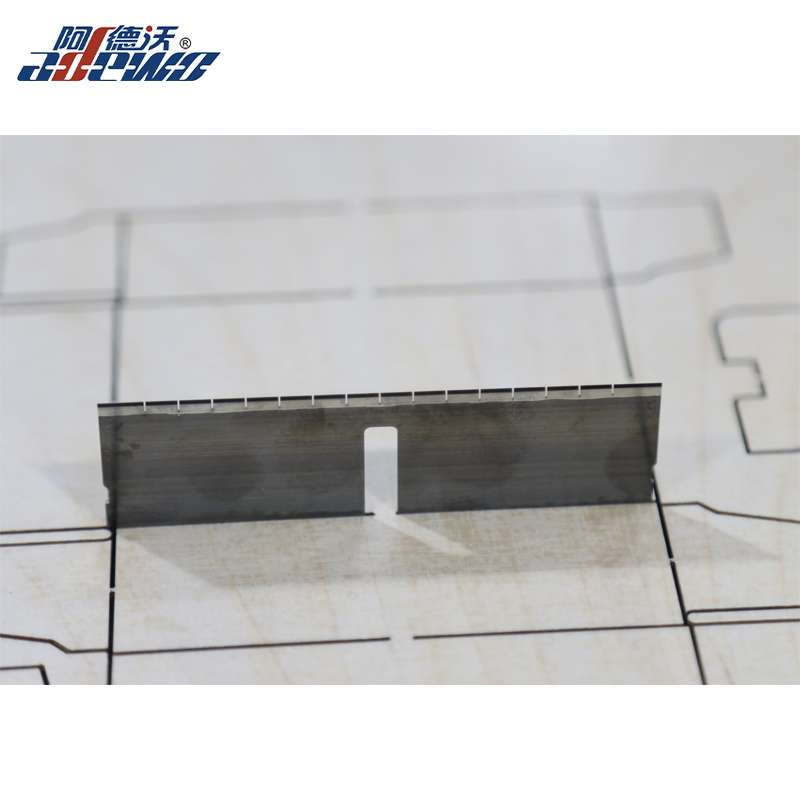

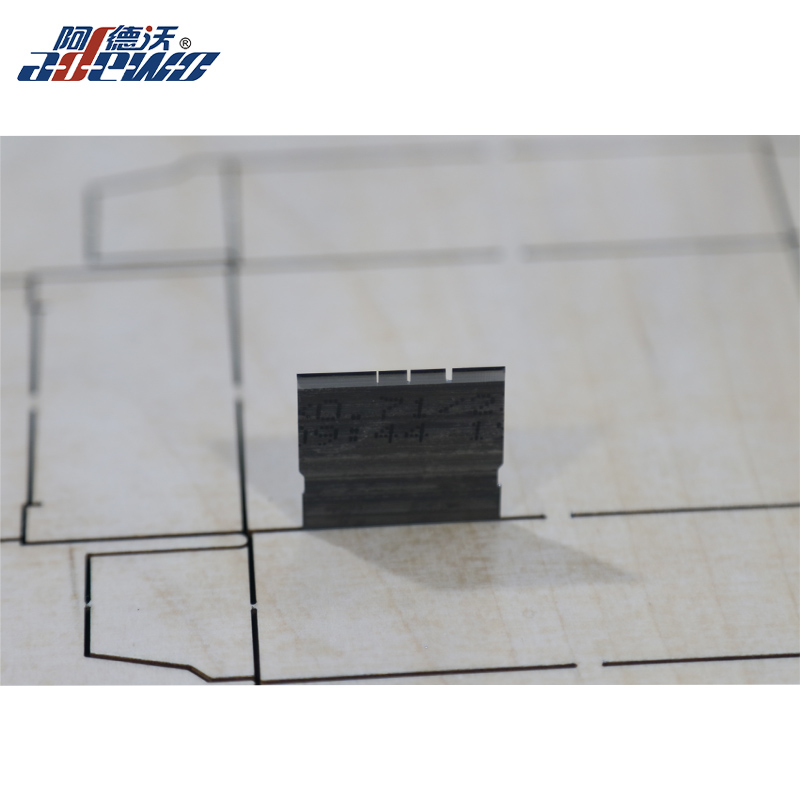

Picture of (ABM-832B2)Die Boards Die Making Auto Bender Machine for reference:
1.Bending and cutting in one,more safety of cutting,High efficiency of bending and cutting.
2.Multi-Nicking size for choice,minimum 0.2mm, the width and depth can be setting through software.
3.Multi-Punch tool for choice:Lipping, Mold Cut, Bridge, Hole or Perforation, independent tool, easy toreplace.
4.Double clamps, screw quide feeding continuously, improves work efficiency.
5.Smart software, easy to operate, multi language available (Chinese/English).
|
Supported rule thickness(mm) |
0.71mm&1.05mm(2pt&3pt) |
|
Supported rule height(mm) |
23.80-32mm |
|
Bridge height |
15mm&18mm adjustable |
|
Bridge width |
Over 5mm any sizes available. |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.5MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Nicking,Perforation,Hole |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
578KGS |
|
Overall dimension |
2800x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDU
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Die Boards Die Making Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of the Die Boards Die Making Auto Bender Machine?
Yes,the new order machine with free spare tools.
